ROS2 Service详解

本文由 ZiQingDream 编写，未经允许禁止转载。

本文作者：工程课代表[B站] / ZiQingDream[Github]

在之前的《ROS2 Executor详解》文章中，我们解释了调度器怎么处理回调和回调组。对于ROS2客户端-服务端架构，服务端符合之前所说的回调机制，这里不再赘述。该文将重心放到客户端的上，ROS2的客户端包含两种写法，同步客户端和异步客户端。

阅读本文需要你有一定ROS2基本理解，至少要有关于客户端-服务端基础知识。

ROS2 服务机制

ROS2官网中关于Service的可视化图，整个处理流程如下（Understanding services — ROS 2 Documentation: Humble documentation）：。

ROS2 Service类似于网络通信中“服务端-客户端”架构，客户端发送请求给服务端，服务端（Server）接收到请求，会执行预先注册回调函数。ROS2 Service服务端符合《ROS2 Executor详解》中的回调机制，这里不在赘述。Service模式属于”N-1”模式，多个客户端（Client）发送请求给服务端，服务端每次处理一个请求，并返回相应。（这也同样受回调组的影响）

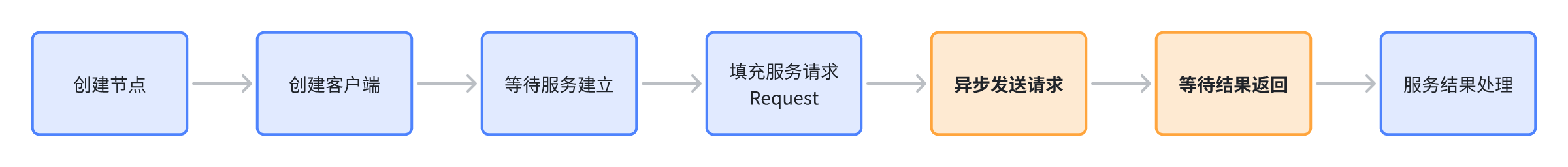

客户端代码流程一般如下图。在客户端代码中，等待结果返回方式有两种模式：同步模式和异步回调模式。无论哪一种模式，请求的发送都是异步发送的。也就是说在发送完请求后，可以不必等待，去做其他工作，在之后合适的时机去等待、检查结果返回，并对结果做进一步处理。

同步Service-Client模式

实验

服务端

#include <cinttypes>
#include <memory>

#include "example_interfaces/srv/add_two_ints.hpp"
#include "rclcpp/rclcpp.hpp"

using AddTwoInts = example_interfaces::srv::AddTwoInts;
rclcpp::Node::SharedPtr g_node = nullptr;

// 服务端回调，用于处理客户端请求
// 由于只有一个线程运行，整个服务处理一定要尽快完成
void handle_service(
  const std::shared_ptr<rmw_request_id_t> request_header,
  const std::shared_ptr<AddTwoInts::Request> request,
  const std::shared_ptr<AddTwoInts::Response> response)
{
  (void)request_header;
  RCLCPP_INFO(
    g_node->get_logger(),
    "request: %" PRId64 " + %" PRId64, request->a, request->b);
  response->sum = request->a + request->b;
}

int main(int argc, char ** argv)
{
  rclcpp::init(argc, argv);
  g_node = rclcpp::Node::make_shared("minimal_service");
  auto server = g_node->create_service<AddTwoInts>("add_two_ints", handle_service);
  rclcpp::spin(g_node);
  rclcpp::shutdown();
  g_node = nullptr;
  return 0;
}

同步客户端

#include <chrono>
#include <cinttypes>
#include <memory>

#include "example_interfaces/srv/add_two_ints.hpp"
#include "rclcpp/rclcpp.hpp"

using AddTwoInts = example_interfaces::srv::AddTwoInts;

// 注意这里并没有建立一个新的类
int main(int argc, char * argv[])
{
  rclcpp::init(argc, argv);

  // 首先建立一个node节点
  auto node = rclcpp::Node::make_shared("minimal_client");

  // 调用节点API创建一个客户端
  auto client = node->create_client<AddTwoInts>("add_two_ints");

  // 等待服务端服务可用
  while (!client->wait_for_service(std::chrono::seconds(1))) {
    if (!rclcpp::ok()) {
      RCLCPP_ERROR(node->get_logger(), "client interrupted while waiting for service to appear.");
      return 1;
    }
    RCLCPP_INFO(node->get_logger(), "waiting for service to appear...");
  }

  // 新建请求，填充数据
  auto request = std::make_shared<AddTwoInts::Request>();
  request->a = 41;
  request->b = 1;

  // 异步发送到服务端
  auto result_future = client->async_send_request(request);

  // 等待服务端处理完成
  // 注意这里的node不能被加入到executor，否则程序会报错崩溃
  if (rclcpp::spin_until_future_complete(node, result_future) != rclcpp::FutureReturnCode::SUCCESS)
  {
    // 失败的话，要移除挂起的请求
    RCLCPP_ERROR(node->get_logger(), "service call failed :(");
    client->remove_pending_request(result_future);
    return 1;
  }

  // 获取客户端结果
  auto result = result_future.get();
  RCLCPP_INFO(
    node->get_logger(), "result of %" PRId64 " + %" PRId64 " = %" PRId64,
    request->a, request->b, result->sum);

  rclcpp::shutdown();
  return 0;
}

同步客户端分析

如之前所述，请求发送是异步的，通过调用async_send_request()函数，请求被通过DDS发送给服务端：

auto result_future = client->async_send_request(request);

async_send_request()异步发送的代码如下：

// src/ros2/rclcpp/rclcpp/include/rclcpp/client.hpp
template<typename ServiceT>
class Client : public ClientBase
{
  // 请求和回复是在服务消息中定义的
  using Request = typename ServiceT::Request;
  using Response = typename ServiceT::Response;

  using SharedRequest = typename ServiceT::Request::SharedPtr;
  using SharedResponse = typename ServiceT::Response::SharedPtr;

  // 服务的Promise，其实相当于std::promise
  using Promise = std::promise<SharedResponse>;
  using PromiseWithRequest = std::promise<std::pair<SharedRequest, SharedResponse>>;

  using SharedPromise = std::shared_ptr<Promise>;
  using SharedPromiseWithRequest = std::shared_ptr<PromiseWithRequest>;

  // 服务的Future，其实相当于std::future
  using Future = std::future<SharedResponse>;
  using SharedFuture = std::shared_future<SharedResponse>;
  using SharedFutureWithRequest = std::shared_future<std::pair<SharedRequest, SharedResponse>>;

  // 回调类型
  using CallbackType = std::function<void (SharedFuture)>;
  using CallbackWithRequestType = std::function<void (SharedFutureWithRequest)>;

  // detail::FutureAndRequestId 其实是 future和ID的封装
  struct FutureAndRequestId
    : detail::FutureAndRequestId<std::future<SharedResponse>>
  {
    using detail::FutureAndRequestId<std::future<SharedResponse>>::FutureAndRequestId;
    /// See std::future::share().
    SharedFuture share() noexcept {return this->future.share();}
  };

  FutureAndRequestId async_send_request(SharedRequest request)
  {
    // 建立promise，并且获取对应future，以便异步操作
    Promise promise;
    auto future = promise.get_future();

    // 执行异步发送，并且这里promise，通过std::move将控制权交出去了
    auto req_id = async_send_request_impl(
      *request,
      std::move(promise));

    return FutureAndRequestId(std::move(future), req_id);
  }
};

async_send_request()首先建立promise并获取future（注意这里的future带有一个请求ID），以便未来能够通过promise通知结果已经准备好。（如果对这部分不清楚，可以参考std::promise）。消息发送的流程，交给了async_send_request_impl()函数。

template<typename ServiceT>
class Client : public ClientBase
{
  using CallbackTypeValueVariant = std::tuple<CallbackType, SharedFuture, Promise>;
  using CallbackWithRequestTypeValueVariant = std::tuple<
    CallbackWithRequestType, SharedRequest, SharedFutureWithRequest, PromiseWithRequest>;

  using CallbackInfoVariant = std::variant<
    std::promise<SharedResponse>,
    CallbackTypeValueVariant,
    CallbackWithRequestTypeValueVariant>;
  //
  int64_t async_send_request_impl(const Request & request, CallbackInfoVariant value)
  {
    int64_t sequence_number;
    std::lock_guard<std::mutex> lock(pending_requests_mutex_);
    rcl_ret_t ret = rcl_send_request(get_client_handle().get(), &request, &sequence_number);
    if (RCL_RET_OK != ret) {
      rclcpp::exceptions::throw_from_rcl_error(ret, "failed to send request");
    }
    pending_requests_.try_emplace(
      sequence_number,
      std::make_pair(std::chrono::system_clock::now(), std::move(value)));
    return sequence_number;
  }
};

async_send_request_impl()通过调用RCL层rcl_send_request()发送请求，并返回请求ID。然后以这个ID为键，将请求保留到pending_requests_，表明该请求在处理，之后收到服务端的反馈后，程序会pending_requests_中找到对应的请求Promise，然后通知客户端，结果已经返回。另外如果客户端不想接受反馈（例如出错了），则需要将请求从pending_requests_移除，防止回调被调用，这也很重要。
RCL底层细节暂不关注，请求发出后，返回的future就是等待任务完成的手段，程序通过spin_until_future_complete()等待结果返回：

auto request = std::make_shared<AddTwoInts::Request>();
request->a = 41;
request->b = 1;
auto result_future = client->async_send_request(request);
if (rclcpp::spin_until_future_complete(node, result_future) != rclcpp::FutureReturnCode::SUCCESS)
{
  RCLCPP_ERROR(node->get_logger(), "service call failed :(");
  client->remove_pending_request(result_future);
  return 1;
}

这里有一个问题：为什么不能直接调用future.get()？

要回答这个问题，我们需要深入spin_until_future_complete()函数，看下有什么额外的操作：

// src/ros2/rclcpp/rclcpp/include/rclcpp/executors.hpp
template<typename FutureT, typename TimeRepT = int64_t, typename TimeT = std::milli>
rclcpp::FutureReturnCode
spin_until_future_complete(
  rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr,
  const FutureT & future,
  std::chrono::duration<TimeRepT, TimeT> timeout = std::chrono::duration<TimeRepT, TimeT>(-1))
{
  rclcpp::ExecutorOptions options;
  options.context = node_ptr->get_context();
  rclcpp::executors::SingleThreadedExecutor executor(options);
  return executors::spin_node_until_future_complete<FutureT>(executor, node_ptr, future, timeout);
}

template<typename NodeT = rclcpp::Node, typename FutureT, typename TimeRepT = int64_t,
  typename TimeT = std::milli>
rclcpp::FutureReturnCode
spin_until_future_complete(
  std::shared_ptr<NodeT> node_ptr,
  const FutureT & future,
  std::chrono::duration<TimeRepT, TimeT> timeout = std::chrono::duration<TimeRepT, TimeT>(-1))
{
  return rclcpp::spin_until_future_complete(node_ptr->get_node_base_interface(), future, timeout);
}

在spin_until_future_complete()中建立一个单线程执行器，然后将传入的节点加入到单线程执行器，从而提供了与ROS2底层通信交互的能力，该执行器负责驱动底层获取由服务端反馈的消息。具体细节如下：

// src/ros2/rclcpp/rclcpp/include/rclcpp/executors.hpp
namespace executors
{
using rclcpp::executors::MultiThreadedExecutor;
using rclcpp::executors::SingleThreadedExecutor;

template<typename FutureT, typename TimeRepT = int64_t, typename TimeT = std::milli>
rclcpp::FutureReturnCode
spin_node_until_future_complete(
  rclcpp::Executor & executor,
  rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr,
  const FutureT & future,
  std::chrono::duration<TimeRepT, TimeT> timeout = std::chrono::duration<TimeRepT, TimeT>(-1))
{
  // TODO(wjwwood): does not work recursively; can't call spin_node_until_future_complete
  // inside a callback executed by an executor.
  executor.add_node(node_ptr);
  auto retcode = executor.spin_until_future_complete(future, timeout);
  executor.remove_node(node_ptr);
  return retcode;
}

template<typename NodeT = rclcpp::Node, typename FutureT, typename TimeRepT = int64_t,
  typename TimeT = std::milli>
rclcpp::FutureReturnCode
spin_node_until_future_complete(
  rclcpp::Executor & executor,
  std::shared_ptr<NodeT> node_ptr,
  const FutureT & future,
  std::chrono::duration<TimeRepT, TimeT> timeout = std::chrono::duration<TimeRepT, TimeT>(-1))
{
  return rclcpp::executors::spin_node_until_future_complete(
    executor,
    node_ptr->get_node_base_interface(),
    future,
    timeout);
}

}  // namespace executors

由于节点被加入到临时的单线程执行器中，并且执行器通过节点与ROS2底层进行交互，所以对节点有以下要求：

1. 该节点必须是创建客户端的节点，否则会阻塞但不会返回；
2. 该节点在调用前不能加入到其他执行器中，否则就会抛出异常，导致程序终止。
   紧接着控制权就交给了SingleThreadedExecutor的spin_until_future_complete()函数，该函数代码如下：

template<typename FutureT, typename TimeRepT = int64_t, typename TimeT = std::milli>
FutureReturnCode
spin_until_future_complete(
  const FutureT & future,
  std::chrono::duration<TimeRepT, TimeT> timeout = std::chrono::duration<TimeRepT, TimeT>(-1))
{
  // TODO(wjwwood): does not work recursively; can't call spin_node_until_future_complete
  // inside a callback executed by an executor.
  // 这一段警告写的很清晰，不要在一个callback中，调用spin_node_until_future_complete，否则会引起死锁

  // 再进入spin循环之前，先检查一遍，看结果是不是已经反馈了
  std::future_status status = future.wait_for(std::chrono::seconds(0));
  if (status == std::future_status::ready) {
    return FutureReturnCode::SUCCESS;
  }

  // 等待时间处理，计算结束时间
  auto end_time = std::chrono::steady_clock::now();
  std::chrono::nanoseconds timeout_ns = std::chrono::duration_cast<std::chrono::nanoseconds>(
    timeout);
  if (timeout_ns > std::chrono::nanoseconds::zero()) {
    end_time += timeout_ns;
  }
  std::chrono::nanoseconds timeout_left = timeout_ns;

  // 进入spin循环中，这段代码我们之前在讲执行器的时候已经很熟悉了
  if (spinning.exchange(true)) {
    throw std::runtime_error("spin_until_future_complete() called while already spinning");
  }

  RCPPUTILS_SCOPE_EXIT(this->spinning.store(false); );
  while (rclcpp::ok(this->context_) && spinning.load()) {
    // 执行回调检查，看看有没有服务端消息反馈，这里其实就是调用了get_next_executable、execute_any_executable
    spin_once_impl(timeout_left);

    // 询问是否promise通知我已经消息返回了
    status = future.wait_for(std::chrono::seconds(0));
    if (status == std::future_status::ready) {
      // 这里返回了成功，表示有结果正常返回
      return FutureReturnCode::SUCCESS;
    }
    // 如果timeout<0，阻塞式等待，没有超时要求
    if (timeout_ns < std::chrono::nanoseconds::zero()) {
      continue;
    }

    // 判断是否完成了超时
    auto now = std::chrono::steady_clock::now();
    if (now >= end_time) {
      return FutureReturnCode::TIMEOUT;
    }
    // Subtract the elapsed time from the original timeout.
    timeout_left = std::chrono::duration_cast<std::chrono::nanoseconds>(end_time - now);
  }

  // The future did not complete before ok() returned false, return INTERRUPTED.
  return FutureReturnCode::INTERRUPTED;
}

等待包含三种状态：

1. FutureReturnCode::SUCCESS：一切正常，拿到了从服务端反馈的消息
2. FutureReturnCode::TIMEOUT：超时了，需要继续等待或做错误处理
3. FutureReturnCode::INTERRUPTED：操作被终端，有可能是ROS2底层出了问题
   在返回不为FutureReturnCode::SUCCESS，要处理好pending_requests_中滞留的请求（移除或继续等待）

有了之前文章中调度器概念后，整个过程并不复杂，就是通过执行器处理底层消息，当服务结果有反馈时，spin_once_impl()的execute_any_executable()触发客户端回调，future对应promise就会被设置，从而future.wait_for就会获取到”有结果到来”的通知：

// src/ros2/rclcpp/rclcpp/include/rclcpp/client.hpp
template<typename ServiceT>
class Client : public ClientBase
{
public:
void
  handle_response(
    std::shared_ptr<rmw_request_id_t> request_header,
    std::shared_ptr<void> response) override
  {
    std::optional<CallbackInfoVariant>
    optional_pending_request = this->get_and_erase_pending_request(request_header->sequence_number);
    if (!optional_pending_request) {
      return;
    }
    auto & value = *optional_pending_request;
    auto typed_response = std::static_pointer_cast<typename ServiceT::Response>(
      std::move(response));
    if (std::holds_alternative<Promise>(value)) {
      // 这里promise执行了触发
      auto & promise = std::get<Promise>(value);
      promise.set_value(std::move(typed_response));
    } else if (std::holds_alternative<CallbackTypeValueVariant>(value)) {
      auto & inner = std::get<CallbackTypeValueVariant>(value);
      const auto & callback = std::get<CallbackType>(inner);
      auto & promise = std::get<Promise>(inner);
      auto & future = std::get<SharedFuture>(inner);
      promise.set_value(std::move(typed_response));
      callback(std::move(future));
    } else if (std::holds_alternative<CallbackWithRequestTypeValueVariant>(value)) {
      auto & inner = std::get<CallbackWithRequestTypeValueVariant>(value);
      const auto & callback = std::get<CallbackWithRequestType>(inner);
      auto & promise = std::get<PromiseWithRequest>(inner);
      auto & future = std::get<SharedFutureWithRequest>(inner);
      auto & request = std::get<SharedRequest>(inner);
      promise.set_value(std::make_pair(std::move(request), std::move(typed_response)));
      callback(std::move(future));
    }
  }
};

// src/ros2/rclcpp/rclcpp/src/rclcpp/executor.cpp
void
Executor::execute_client(
  rclcpp::ClientBase::SharedPtr client)
{
  auto request_header = client->create_request_header();
  std::shared_ptr<void> response = client->create_response();
  take_and_do_error_handling(
    "taking a service client response from service",
    client->get_service_name(),
    [&]() {return client->take_type_erased_response(response.get(), *request_header);},
    [&]() {client->handle_response(request_header, response);});
}

void
Executor::execute_any_executable(AnyExecutable & any_exec)
{
  ......
  // 当接收到服务端的反馈消息时，就会执行回调
  if (any_exec.client) {
    execute_client(any_exec.client);
  }
  // Reset the callback_group, regardless of type
  any_exec.callback_group->can_be_taken_from().store(true);
  ......
}

从上方代码基本可以回答之前的问题了：

由于等待过程涉及到底层服务反馈到来后，才会触发promise.set_value，必须使用spin获取底层的消息，不能直接通过future.get()类函数完成等待，否则就会卡死。

异步Service-Client模式

实验

异步客户端

#include <chrono>
#include <cinttypes>
#include <limits>
#include <memory>
#include <string>
#include <utility>
#include <vector>

#include "example_interfaces/srv/add_two_ints.hpp"
#include "rclcpp/rclcpp.hpp"

using AddTwoInts = example_interfaces::srv::AddTwoInts;
using namespace std::chrono_literals;

class ClientNode : public rclcpp::Node
{
public:
  explicit ClientNode(const rclcpp::NodeOptions & options = rclcpp::NodeOptions{})
  : Node("add_two_ints_async_client", options)
  {
    setvbuf(stdout, NULL, _IONBF, BUFSIZ);
    // 创建client
    client_ = create_client<AddTwoInts>("add_two_ints");
    // 启动定时器，每隔5s裁剪掉之前请求
    timer_ = this->create_wall_timer(
      5s,
      [this]() {
        std::vector<int64_t> pruned_requests;
        // Prune all requests older than 5s.
        size_t n_pruned = this->client_->prune_requests_older_than(
          std::chrono::system_clock::now() - 5s, &pruned_requests);
        if (n_pruned) {
          RCLCPP_INFO(
            this->get_logger(),
            "The server hasn't replied for more than 5s, %zu requests were discarded, "
            "the discarded requests numbers are:",
            n_pruned);
          for (const auto & req_num : pruned_requests) {
            RCLCPP_INFO(this->get_logger(), "\t%" PRId64, req_num);
          }
        }
      });
  }

  bool
  wait_for_service_server()
  {
    while (!client_->wait_for_service(std::chrono::seconds(1))) {
      if (!rclcpp::ok()) {
        RCLCPP_ERROR(this->get_logger(), "client interrupted while waiting for service to appear.");
        return false;
      }
      RCLCPP_INFO(this->get_logger(), "waiting for service to appear...");
    }
    return true;
  }

  void
  queue_async_request(int64_t a, int64_t b)
  {
    auto request = std::make_shared<AddTwoInts::Request>();
    request->a = a;
    request->b = b;

    // We give the async_send_request() method a callback that will get executed once the response
    // is received.
    // This way we can return immediately from this method and allow other work to be done by the
    // executor in `spin` while waiting for the response.
    using ServiceResponseFuture =
      rclcpp::Client<example_interfaces::srv::AddTwoInts>::SharedFutureWithRequest;
    auto response_received_callback =
      [logger = this->get_logger()](ServiceResponseFuture future) {
        auto request_response_pair = future.get();
        RCLCPP_INFO(
          logger,
          "Result of %" PRId64 " + %" PRId64 " is: %" PRId64,
          request_response_pair.first->a,
          request_response_pair.first->b,
          request_response_pair.second->sum);
      };
    auto result = client_->async_send_request(
      request, std::move(response_received_callback));
    RCLCPP_INFO(
      this->get_logger(),
      "Sending a request to the server (request_id =%" PRId64
      "), we're going to let you know the result when ready!",
      result.request_id);
  }

private:
  rclcpp::Client<AddTwoInts>::SharedPtr client_;
  rclcpp::TimerBase::SharedPtr timer_;
};

bool
read_more(std::string & buffer, const rclcpp::Logger & logger)
{
  buffer.clear();
  std::getline(std::cin, buffer);
  if (std::cin.fail() || std::cin.eof()) {
    RCLCPP_INFO(logger, "\nProgram was interrupted, bye!");
    return false;
  }
  return true;
}

std::optional<int64_t>
read_number(std::string & buffer, const rclcpp::Logger & logger)
{
  while (1) {
    size_t pos;
    if (!read_more(buffer, logger)) {
      return std::nullopt;
    }
    if (buffer == "q") {
      return std::nullopt;
    }
    auto ret = std::stoll(buffer, &pos);
    if (ret > std::numeric_limits<int64_t>().max()) {
      RCLCPP_INFO(
        logger,
        "The input number should be less or equal than %" PRId64
        "\n Please try again: ",
        std::numeric_limits<int64_t>().max());
      continue;
    }
    if (pos != buffer.size()) {
      RCLCPP_INFO(
        logger,
        "The input should be a number not: %s\n Please try again: ", buffer.c_str());
      continue;
    }
    return ret;
  }
}

int main(int argc, char * argv[])
{
  rclcpp::init(argc, argv);

  auto node = std::make_shared<ClientNode>();
  const auto & logger = node->get_logger();

  // 等待服务端启动建立服务
  RCLCPP_INFO(logger, "waiting for service to appear...");
  if (!node->wait_for_service_server()) {
    return 1;
  }
  RCLCPP_INFO(logger, "Server is available!!!");
  RCLCPP_INFO(logger, "We are going to add two numbers, insert the first one (or 'q' to exit): ");

  int64_t a;
  int64_t b;

  // 启动线程用于spin，注意这里写法，例子里提供了一种停止spin()的方法
  // 至此，有两个线程在并行执行：主线程和执行器spin线程
  std::promise<void> stop_async_spinner;
  std::thread async_spinner_thread(
    [stop_token = stop_async_spinner.get_future(), node]() {
      rclcpp::executors::SingleThreadedExecutor executor;
      executor.add_node(node);
      executor.spin_until_future_complete(stop_token);
    });


  while (1) {
    // 获取数字，不重要
    std::string buffer;
    auto optional_number = read_number(buffer, logger);
    if (!optional_number) {
      break;
    }
    a = *optional_number;
    RCLCPP_INFO(logger, "Insert the second number (or 'q' to exit): ");
    optional_number = read_number(buffer, logger);
    if (!optional_number) {
      break;
    }
    b = *optional_number;

    // 异步发送请求
    node->queue_async_request(a, b);
    RCLCPP_INFO(
      logger,
      "You can prepare another request to add two numbers, insert the first one (or 'q' to exit):"
    );
  }

  // 停止spin线程
  stop_async_spinner.set_value();
  async_spinner_thread.join();
  rclcpp::shutdown();
  return 0;
}

异步客户端分析

以上代码仍然是ros2 example中异步客户端样例，核心在于：

1. 主线程（其他线程）负责注册callback并发送请求
2. 启动独立线程负责执行器spin()，以便在主线程执行其他操作，spin线程完成ROS2消息处理
   异步发送请求代码如下（注意这部分在主线程中完成）：

void
queue_async_request(int64_t a, int64_t b)
{
  // 首先建立一个请求，填充必要数据
  auto request = std::make_shared<AddTwoInts::Request>();
  request->a = a;
  request->b = b;

  // 异步发送请求的callback（lambda），当接收到服务器消息反馈时，就会执行该callback
  using ServiceResponseFuture =
    rclcpp::Client<example_interfaces::srv::AddTwoInts>::SharedFutureWithRequest;
  auto response_received_callback =
    [logger = this->get_logger()](ServiceResponseFuture future) {
      auto request_response_pair = future.get();
      RCLCPP_INFO(
        logger,
        "Result of %" PRId64 " + %" PRId64 " is: %" PRId64,
        request_response_pair.first->a,
        request_response_pair.first->b,
        request_response_pair.second->sum);
    };

  // 异步发送请求，只不过这里多了一个callback函数
  auto result = client_->async_send_request(
    request, std::move(response_received_callback));
  RCLCPP_INFO(
    this->get_logger(),
    "Sending a request to the server (request_id =%" PRId64
    "), we're going to let you know the result when ready!",
    result.request_id);
}

在发送请求代码中async_send_request()提供回调函数response_received_callback()，用于在接收到服务消息反馈时，触发回调函数调用。

template<typename ServiceT>
class Client : public ClientBase
  template<
    typename CallbackT,
    typename std::enable_if<
      rclcpp::function_traits::same_arguments<
        CallbackT,
        CallbackWithRequestType
      >::value
    >::type * = nullptr
  >
  SharedFutureWithRequestAndRequestId
  async_send_request(SharedRequest request, CallbackT && cb)
  {
    PromiseWithRequest promise;
    auto shared_future = promise.get_future().share();
    auto req_id = async_send_request_impl(
      *request,
      // 这里将回调、请求、future、promise打包在一起
      std::make_tuple(
        CallbackWithRequestType{std::forward<CallbackT>(cb)},
        request,
        shared_future,
        std::move(promise)));
    return SharedFutureWithRequestAndRequestId{std::move(shared_future), req_id};
  }
};

具体触发回调的位置，我们之前在同步客户端中已经说明了，具体细节：

// src/ros2/rclcpp/rclcpp/include/rclcpp/client.hpp
template<typename ServiceT>
class Client : public ClientBase
{
public:
void
  handle_response(
    std::shared_ptr<rmw_request_id_t> request_header,
    std::shared_ptr<void> response) override
  {
    std::optional<CallbackInfoVariant>
    optional_pending_request = this->get_and_erase_pending_request(request_header->sequence_number);
    if (!optional_pending_request) {
      return;
    }
    auto & value = *optional_pending_request;
    auto typed_response = std::static_pointer_cast<typename ServiceT::Response>(
      std::move(response));
    if (std::holds_alternative<Promise>(value)) {
      auto & promise = std::get<Promise>(value);
      promise.set_value(std::move(typed_response));
    } else if (std::holds_alternative<CallbackTypeValueVariant>(value)) {
      auto & inner = std::get<CallbackTypeValueVariant>(value);
      const auto & callback = std::get<CallbackType>(inner);
      auto & promise = std::get<Promise>(inner);
      auto & future = std::get<SharedFuture>(inner);
      promise.set_value(std::move(typed_response));
      callback(std::move(future));
    } else if (std::holds_alternative<CallbackWithRequestTypeValueVariant>(value)) {
      // 会在这个分支
      auto & inner = std::get<CallbackWithRequestTypeValueVariant>(value);
      const auto & callback = std::get<CallbackWithRequestType>(inner);
      auto & promise = std::get<PromiseWithRequest>(inner);
      auto & future = std::get<SharedFutureWithRequest>(inner);
      auto & request = std::get<SharedRequest>(inner);

      // 注意这里，先让promise设置值，然后调用callback
      promise.set_value(std::make_pair(std::move(request), std::move(typed_response)));
      callback(std::move(future));
    }
  }
};

当从服务端接收到回应时，handle_response()被调用，代码通过promise.set_value通知客户端，消息已经被回应了。之后调用callback()，这就是用户注册回调函数，可对结果进一步地处理。另外值得注意的是，用户的回调是在执行器线程中被调用的，自定义的功能代码要做好共享变量的数据同步和保护。
